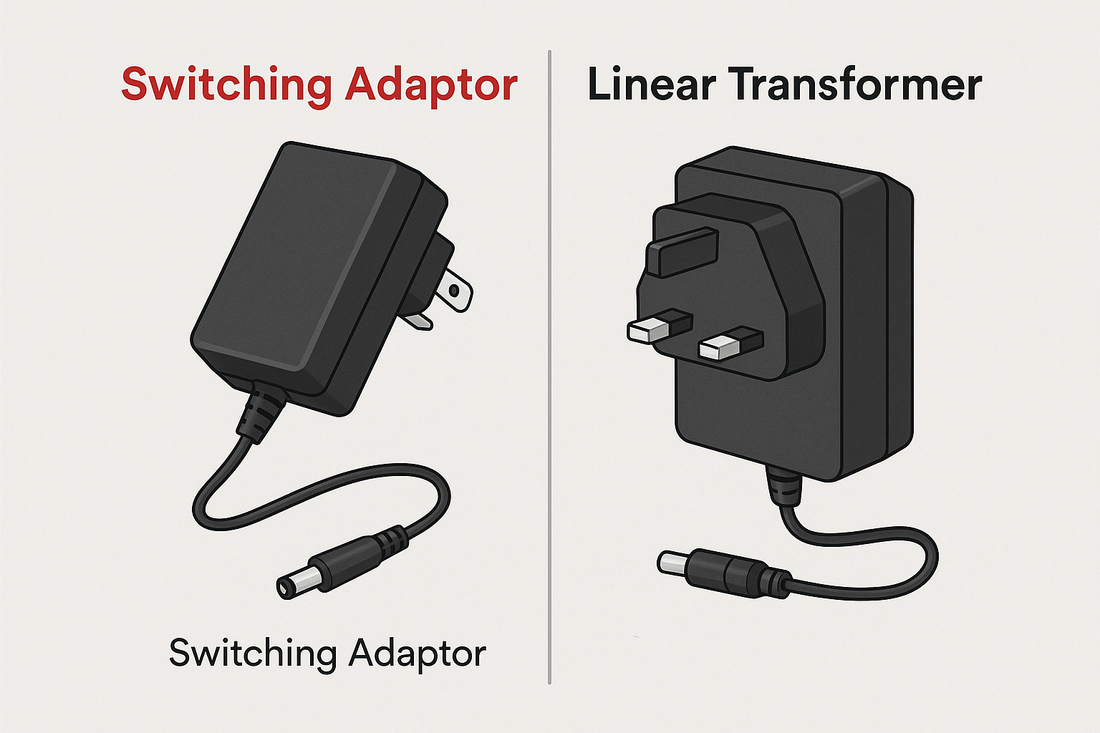

Switching adaptors vs Linear Transformer Adaptors

Switching adaptors vs Linear Transformer Adaptors



⚡ Linear Transformer (Old-style “Heavy” Adaptors)

  • How they work:
    Use a copper/iron transformer to step down UK mains (230 V AC) to a lower AC voltage (e.g. 12 V AC). Then, if needed, they rectify and regulate it to DC.

  • Size & weight:
    Heavy and bulky — because the transformer has to be large to handle 50 Hz mains frequency.

  • Efficiency:
    Not very efficient (lots of heat loss). They constantly draw power even when no load is connected.

  • Output quality:
    Very “clean” and smooth DC (if regulated), with low electrical noise.

  • Durability:
    Rugged and simple, often last decades.

  • Safety:
    Run cooler at low loads but can overheat if overloaded. Usually fused.

⚡ Switching Adaptor (Modern “Lightweight” Plug-top)

  • How they work:
    Convert mains into high-frequency AC (tens of kHz), then use a much smaller transformer to step it down. Finally, rectify/regulate to stable DC.

  • Size & weight:
    Compact and very light — small high-frequency transformers don’t need big iron cores.

  • Efficiency:
    High efficiency (70–90%+), draw almost no power when idle.

  • Output quality:
    Well-regulated DC voltage, but can introduce high-frequency “switching noise” (not usually a problem for most electronics, but may cause interference in sensitive audio/radio equipment).

  • Durability:
    More complex circuitry — electrolytic capacitors can dry out over time, so lifespan is usually shorter than a linear unit.

  • Safety:
    Must meet strict UK/EU safety standards (CE/UKCA, BS EN 62368 etc). Cheap/no-name versions can be risky if poorly designed.

🔑 Main Differences (UK context)

Feature Linear Transformer Switching Adaptor
Weight Heavy Light
Size Bulky Compact
Efficiency Low (wastes heat) High
Noise Very low Some high-freq ripple
Cost More expensive to make Cheaper mass-production
Voltage Stability Poor unless regulated Very stable
Mains Freq. Works at 50 Hz Works at high kHz (tiny transformer)
Use cases Audio gear, lab supplies, old equipment Phones, laptops, LED lights, almost all modern electronics

✅ In the UK today:

  • Almost all consumer devices use switch-mode adaptors because they’re efficient, light, and can accept a wide voltage range (100–240 V, 50/60 Hz) — useful for worldwide use.

  • Linear adaptors are still used in some specialist or noise-sensitive applications (like audio preamps or vintage hi-fi gear), and some older devices.
